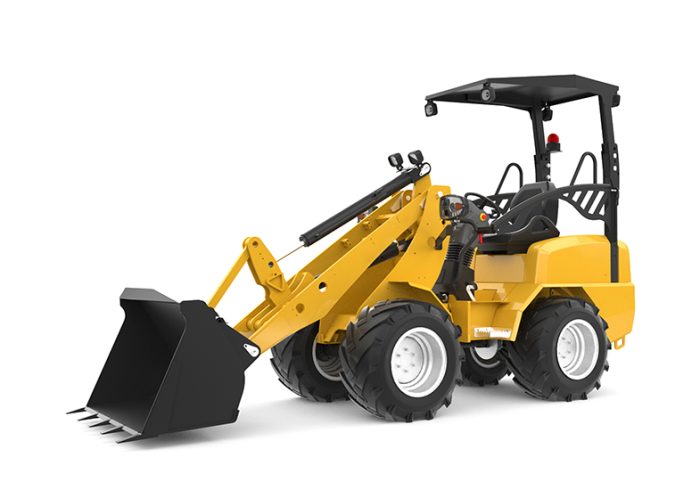

DK300 Specs. & Configs.
Key Specifications
| Operating Weight | 4409 lb. (2000 kg) |
|---|---|
| Max. Tipping Load | 2866 lb. (1300 kg) |
| Max. Dump Height | 81.89 in. (2080 mm) |
| Width with Bucket | 45.67 in. (1160 mm) |
Engine
| Emission | EPA |
|---|---|
| Manufacturer | Kubota D1703 |
| Horsepower | 25 hp (18.5 kW) @ 3600 rpm |
| Type | Diesel |
Performance
| Operating Weight | 4409 lb. (2000 kg) |
|---|---|
| Max. Tipping Load | 2866 lb. (1300 kg) |
| Max. Lifting Capacity | 2204 lb. (1000 kg) |
| Max. Lifting Height | 145.47 in. (3695 mm) |
| Max. Dump Height | 81.89 in. (2080 mm) |
| Min. Turning Radius | 50.47 in. (1282 mm) |
Capacity
| Fuel Tank | 7.9 gal. (30 L) |
|---|---|
| Max. Lifting Capacity | 10.59 ft³. (0.3 m³) |
Hydraulic System
| Hydraulic Standard Flow | 10.6 gal. (40 l/min) |
|---|---|
| Hydraulic System Pressure (Standard) | N/A |
Dimensions
| Overall Lenght | N/A |
|---|---|
| Width with Bucket | 45.67 in. (1160 mm) |
| Height to Bucket Hinge Pin | 78.74 in. (2960 mm) |
| Length of track on ground | 78.74 in. (2000 mm) |
| Wheel Base | 78.74 in. (2000 mm) |
| Hydraulic Thumb | Standard |
|---|---|
| Swing Boom | Standard |
| Oil Pump Radiator | Standard |
| Dozer Blade | Standard |
| Cab Enclosure A/C | Standard |
| Reinforced Undercarriage | Standard |
| Quick Hitch | Optional |
| Auxiliary Hydraulics | Optional |
| High-low Speed Travel | Standard |
| Load Sensitive Control | Optional |
| Rubber Track | Standard |
| Steel Track | Optional |
| Angel Blade | Optional |
| Telescopic Undercarriage | Optional |
DK300 Features
| Optimized Hydraulics | |
|---|---|
| Predictable Control | |
| Exceptional Uptime | |
| Reinforced Undercarriage | |
| Integrated Rear Counterweight | |
| Protected Components | |
| Simple Transportation |
UP TO 36 MONTHS FINANCE
DK300 Attachments
