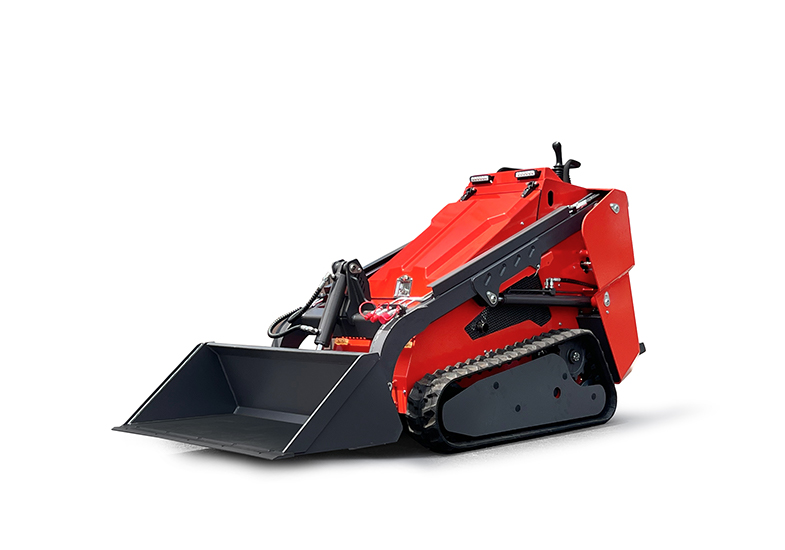

DK700 Specs. & Configs.
Key Specifications
| Rated Operating Capacity | 1719 lb. (780 kg) |
|---|---|
| Operating Weight | 5512 lb. (2500 kg) |
| Max. Dump Height | 71.5 in. (1816mm) |
| Ground Pressure | N/A |
Engine
| Emission | EPA |
|---|---|
| Manufacturer | Kubota |
| Horsepower | 25hp (18.2 kW) |
| Type | Diesel |
Performance
| Rated Operating Capacity | 1719 lb. (780 kg) |
|---|---|
| Operating Weight | 5512 lb. (2500 kg) |
| Max. Dump Height | 71.5 in. (1816mm) |
| Tipping Load | N/A |
| Travel Speed | 3.73 mph (6 km/hr.) |
| Ground Pressure | N/A |
Capacity
| Fuel Tank | 7.66 gal. (29L) |
|---|---|
| Bucket Volume | 7.06 ft.³ (0.2 m³) |
Hydraulic System
| Hydraulic Standard Flow | N/A |
|---|---|
| Hydraulic System Pressure (Standard) | 2465 psi (17 Mpa) |
Dimensions
| Overall Lenght | 114.29 in. (2903 mm) |
|---|---|
| Width with Bucket | 48.62 in. (1235 mm) |
| Height to Bucket Hinge Pin | 78.74 in. (2000 mm) |
| Length of track on ground | 42.52 in. (1080 mm) |
| Track Width | N/A |
| Joystick Control | Standard |
|---|---|
| Lift Arm Support | Standard |
| Integrated Counterweight | Optional |
| 3 Spool Valve | Standard |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Optional |
| Quick Attach System | Standard |
| Wide Track | Optional |
| Lift Arm Lockout | Optional |
| Tilt Lockout | Optional |
DK700 Features
| Exceptional Maneuverability | |
|---|---|
| Low Ground Pressure | |
| 1700+ lb Rated Operating Capacity | |
| Lift Height and Reach Performance | |
| Integrated Counterweight | |
| 6 km/h. Travel Speed Max. | |
| Smooth, Responsive and Precise Control | |
| Optimum Weight Balance | |
| Compatible with Entire Attachment Lineup | |
| Grease Track Tension |
UP TO 36 MONTHS FINANCE
DK700 Attachments
