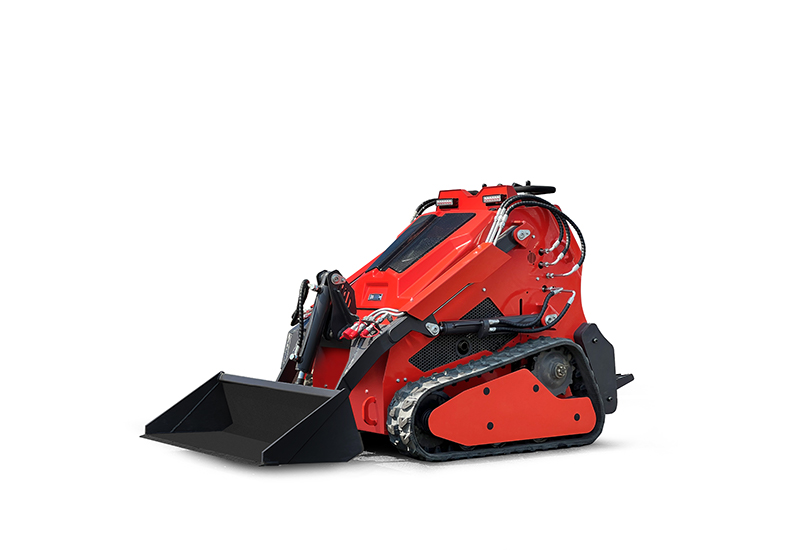

DK500 Specs. & Configs.
Key Specifications
| Rated Operating Capacity | 881lb. (400 kg) |
|---|---|
| Operating Weight | 3306 lb. (1500 kg) |
| Max. Dump Height | 57.16 in. (1452mm) |
| Ground Pressure | N/A |
Engine
| Emission | EPA |
|---|---|
| Manufacturer | Briggs & Stratton |
| Horsepower | 23hp (17.1 kW) |
| Type | Gasoline |
Performance
| Rated Operating Capacity | 881lb. (400 kg) |
|---|---|
| Operating Weight | 3306 lb. (1500 kg) |
| Max. Dump Height | 57.16 in. (1452mm) |
| Tipping Load | N/A |
| Travel Speed | 2.48 mph (4 km/hr.) |
| Ground Pressure | N/A |
Capacity
| Fuel Tank | 6.61 gal. (25L) |
|---|---|
| Bucket Volume | 5.3 ft.³ (0.15 m³) |
Hydraulic System
| Hydraulic Standard Flow | N/A |
|---|---|
| Hydraulic System Pressure (Standard) | 2465 psi (17 Mpa) |
Dimensions
| Overall Lenght | 92.32 in. (2345 mm) |
|---|---|
| Width with Bucket | 44.88 in. (1140 mm) |
| Height to Bucket Hinge Pin | 73.89 in. (1877mm) |
| Length of track on ground | 45.78 in. (1163 mm) |
| Track Width | N/A |
| Joystick Control | Standard |
|---|---|
| Lift Arm Support | Standard |
| Integrated Counterweight | Optional |
| 3 Spool Valve | Optional |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Optional |
| Quick Attach System | Standard |
| Wide Track | Optional |
| Lift Arm Lockout | Optional |
| Tilt Lockout | Optional |
DK500 Features
| Exceptional Maneuverability | |
|---|---|
| Low Ground Pressure | |
| 850+ lb Rated Operating Capacity | |
| Lift Height and Reach Performance | |
| Integrated Counterweight | |
| 4 km/h. Travel Speed Max. | |
| Smooth, Responsive and Precise Control | |
| Optimum Weight Balance |
|
| Compatible with Entire Attachment Lineup |
|
| Grease Track Tension |
UP TO 36 MONTHS FINANCE
DK500 Attachments
*Offer ends 7/15/2025. Available at eligible participating dealers and on our website only. Offer may vary by product type, series, model and select units in current inventory. Must take delivery from dealer stock by 7/15/2025. Offers available on new equipment in US and Canada only. Some restrictions apply. Length of contract and rate may vary. Monthly payment subject to change. Prior purchases not eligible. Financing provided on approval of credit by authorized DeepKron finance providers to well-qualified buyers. All finance programs and rates are subject to final approval by the applicable DeepKron finance provider and are subject to change at any time without notice. Administrative fees may apply. Offer not available to government purchases and municipal/utility bids. DeepKron Mach. reserves the right to extend or discontinue any of these programs at any time without prior notice.
DeepKron Mach. warrants to its authorized dealers who in turn warrant to the owner, that each new DeepKron excavator with a delivery date on or after 07/04/2013 will be free from proven defects in material and workmanship with respect to major components of the product except as otherwise specified herein for twelve (12) months, or a total of 1000 hours of use, whichever occurs first. The foregoing time periods shall all commence after delivery by the authorized DeepKron dealer to the original buyer.
During the warranty period, the authorized DeepKron dealer shall repair or replace, at DeepKron Mach's option, without charge for parts, any part of the DeepKron product except as otherwise specified herein which fails because of defects in material or workmanship. The owner shall provide the authorized DeepKron dealer with prompt written notice of the defect and allow reasonable time for repair or replacement. DeepKron Mach. may, at its option, require failed parts to be returned to the factory. Transportation of the DeepKron product for warranty work is the responsibility of the owner.
