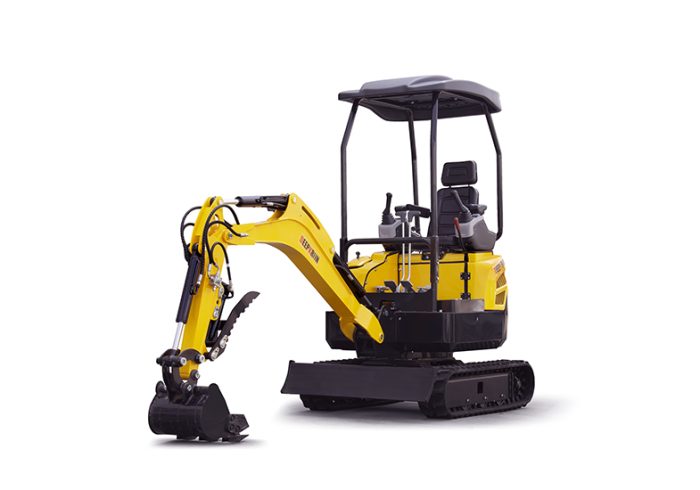

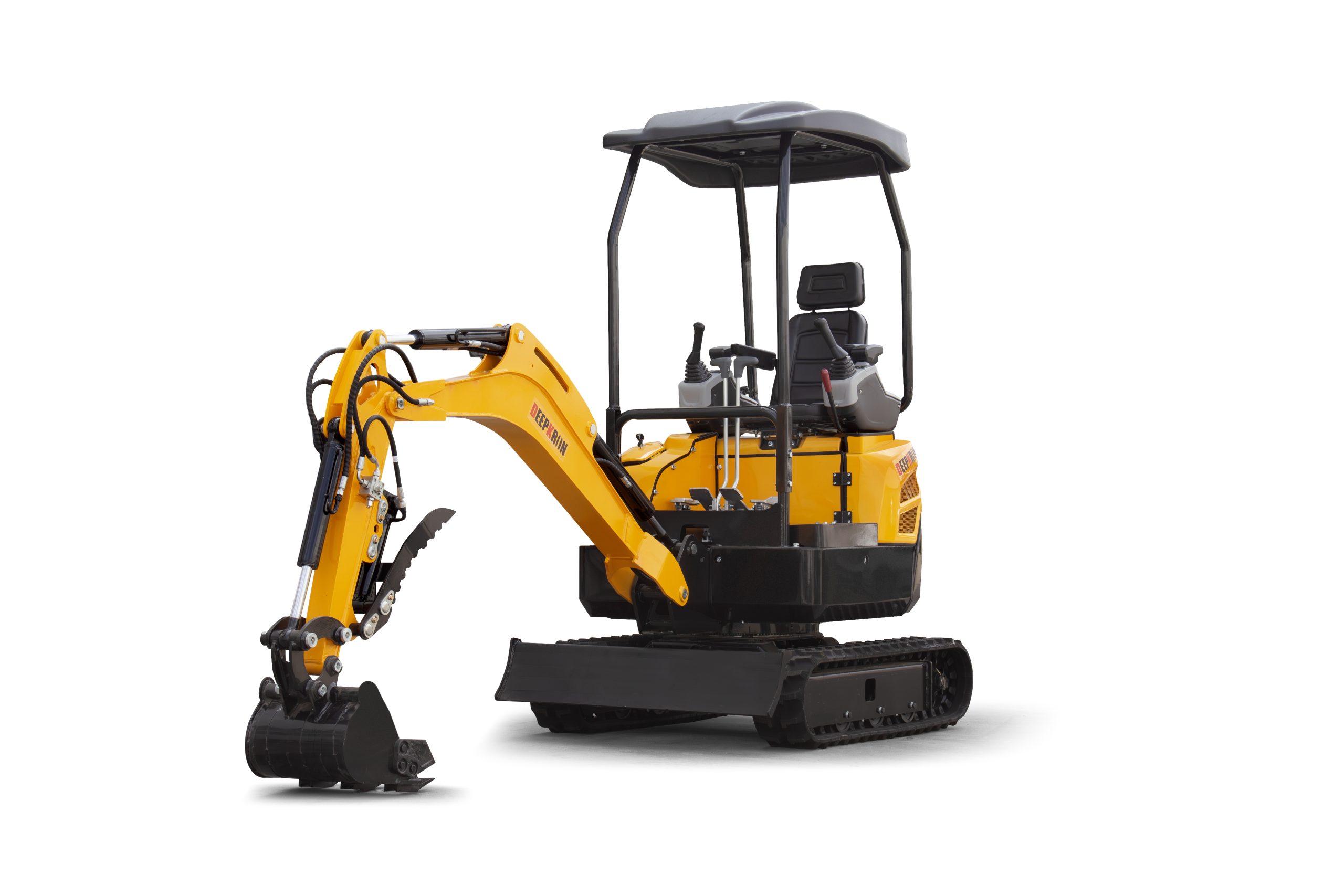

DK16P Specs. & Configs.
Key Specifications
| Operating Weight | 3500 lb. (1600 kg) |
|---|---|
| Max. Dig Depth | 64.96 in. (1650 mm) |
| Reach at Ground Level | 98.03 in. (2490 mm) |
| Width with Blade | 38.58 in. (980 mm) |

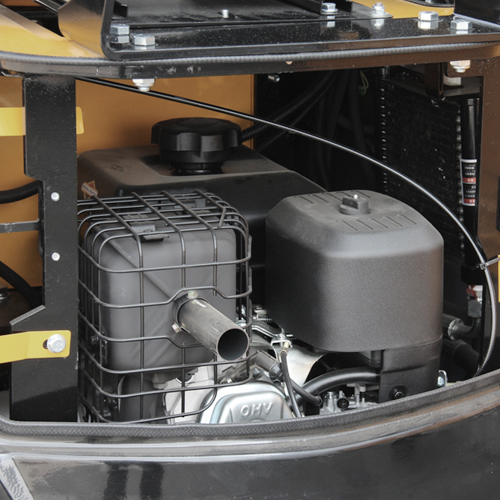

Engine
| Emission | EPA |
|---|---|
| Manufacturer | Briggs & Stratton |
| Horsepower | 13.5 hp (9.9 kW) |
| Type | Gasoline |
Performance
| Operating Weight | 3500 lb. (1600 kg) |
|---|---|
| Arm Breakout Force | 1461 lbf. (6500 N) |
| Bucket Breakout Force | 2923 lbf. (13000 N) |
| Operating Radius | 108.27 in. (2750 mm) |
| Max. Dig Depth | 64.96 in. (1650 mm) |
| Max. Dump Height | 68.91 in. (1750 mm) |
| Reach at Ground Level | 98.03 in. (2490 mm) |
| Length of Track on Ground | 53.15 in. (1350 mm) |
| Travel Speed | 1.37 mph (2.2 km/hr.) |
Capacity
| Fuel Tank | N/A |
|---|---|
| Operating Capacity | N/A |
Hydraulic System
| Standard Flow | 3500 lb. (1600 kg) |
|---|---|
| Rated Operating Pressure | 64.96 in. (1650 mm) |
Dimensions
| Overall Length | N/A |
|---|---|
| Height with Canopy or Cab | 86.61 in. (2200 mm) |
| Width with Blade | 38.58 in. (980 mm) |
| Hydraulic Thumb | Standard |
|---|---|
| Swing Boom | Optional |
| Oil Pump Radiator | Standard |
| Dozer Blade | Standard |
| Cab Enclosure A/C | Optional |
| Reinforced Undercarriage | Standard |
| Quick Hitch | Optional |

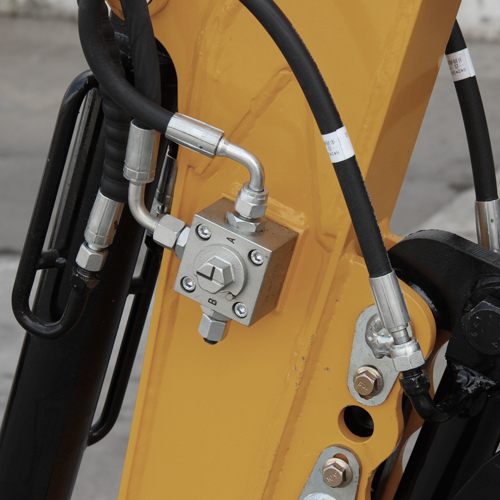

| Auxiliary Hydraulics | Optional |
| High-low Speed Travel | Optional |
| Load Sensitive Control | Optional |
| Rubber Track | Standard |
| Steel Track | Optional |
| Angel Blade | Optional |
| Telescopic Undercarriage | Optional |
DK16P Features

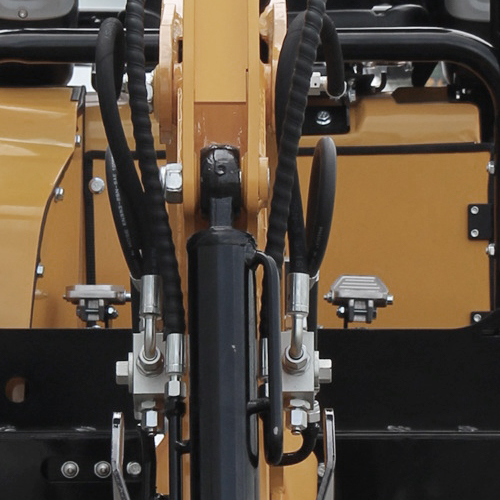

| Optimized Hydraulics | |
|---|---|

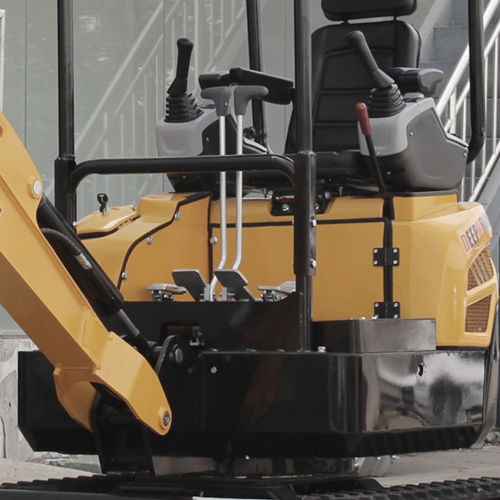

| Predictable Control | |
| Exceptional Uptime | |

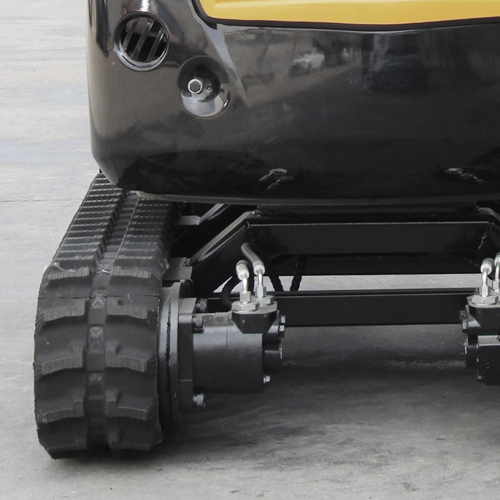

| Reinforced Undercarriage | |

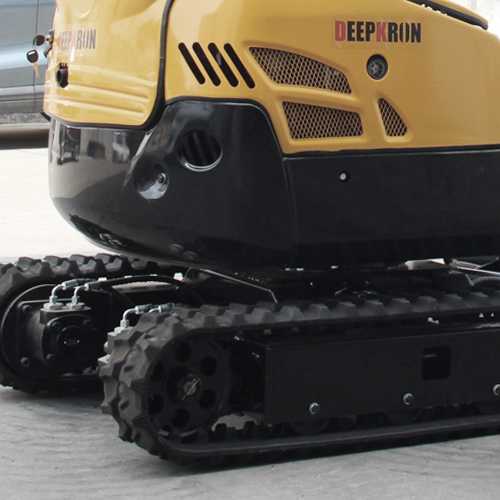

| Integrated Rear Counterweight | |
| Protected Components | |
| Simple Transportation |
0% INTEREST FOR 12 MONTHS FINANCE OR CASH REBATES UP TO $1,000 USD

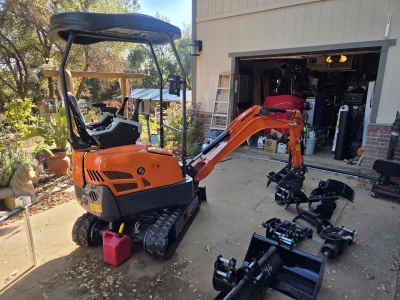

DK16P Attachments
