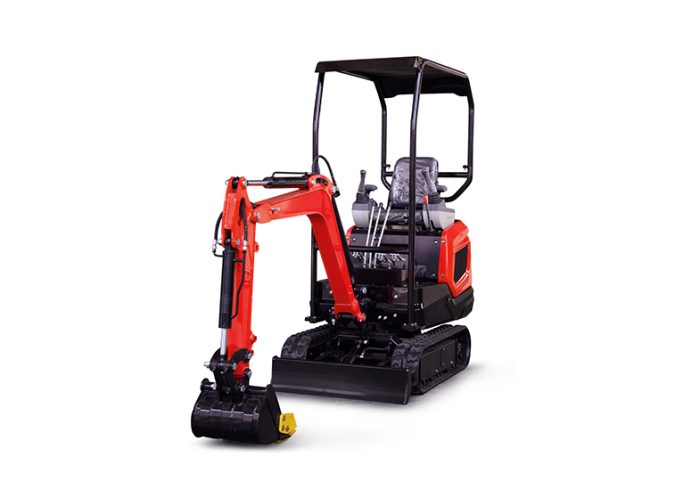

DK12P Specs. & Configs.
Key Specifications
| Operating Weight | 2645 lb. (1200 kg) |
|---|---|
| Max. Dig Depth | 56.54 in. (1436 mm) |
| Reach at Ground Level | 89.88 in. (2283 mm) |
| Width with Blade | 36.77 in. (934 mm) |
Engine
| Emission | EPA |
|---|---|
| Manufacturer | Briggs & Stratton |
| Horsepower | 13.5 hp (9.9 kW) |
| Type | Gasoline |
Performance
| Operating Weight | 2645 lb. (1200 kg) |
|---|---|
| Arm Breakout Force | N/A |
| Bucket Breakout Force | N/A |
| Operating Radius | 98.71 in. (2507 mm) |
| Max. Dig Depth | 56.54 in. (1436 mm) |
| Max. Dump Height | 66.85 in. (1698 mm) |
| Reach at Ground Level | 89.88 in. (2283 mm) |
| Length of Track on Ground | 64.96 in. (1650 mm) |
| Travel Speed | 1.37 mph (2.2 km/hr.) |
Capacity
| Fuel Tank | 1.9 gal. (7.3 L) |
|---|---|
| Rated Operating Capacity | N/A |
Hydraulic System
| Standard Flow | N/A |
|---|---|
| Rated Operating Pressure | N/A |
Dimensions
| Overall Length | N/A |
|---|---|
| Height with Canopy or Cab | N/A |
| Width with Blade | 36.77 in. (934 mm) |
| Hydraulic Thumb | Optional |
|---|---|
| Swing Boom | Optional |
| Oil Pump Radiator | Standard |

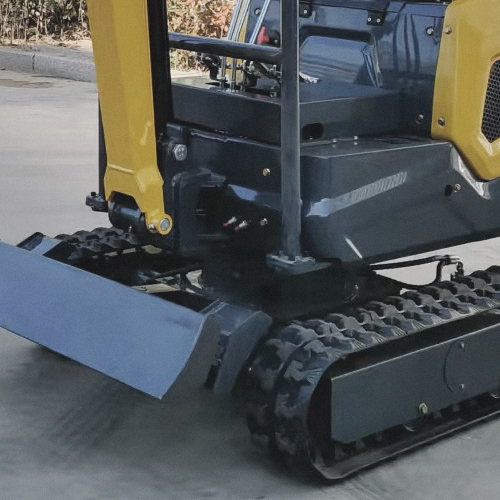

| Dozer Blade | Standard |
| Cab Enclosure A/C | Optional |
| Reinforced Undercarriage | Optional |
| Quick Hitch | Optional |
| Auxiliary Hydraulics | Optional |
| High-low Speed Travel | Optional |
| Load Sensitive Control | Optional |
| Rubber Track | Standard |
| Steel Track | Optional |
| Angel Blade | Optional |
| Telescopic Undercarriage | Optional |
DK12P Features
| Optimized Hydraulics | |
|---|---|
| Predictable Control | |
| Exceptional Uptime | |
| Reinforced Undercarriage | |
| Integrated Rear Counterweight | |
| Protected Components | |
| Simple Transportation |
0% INTEREST FOR 12 MONTHS FINANCE OR CASH REBATES UP TO $500 USD
DK12P Attachments
*Offer ends 7/15/2025. Available at eligible participating dealers and on our website only. Offer may vary by product type, series, model and select units in current inventory. Must take delivery from dealer stock by 7/15/2025. Offers available on new equipment in US and Canada only. Some restrictions apply. Length of contract and rate may vary. Monthly payment subject to change. Prior purchases not eligible. Financing provided on approval of credit by authorized DeepKron finance providers to well-qualified buyers. All finance programs and rates are subject to final approval by the applicable DeepKron finance provider and are subject to change at any time without notice. Administrative fees may apply. Offer not available to government purchases and municipal/utility bids. DeepKron Mach. reserves the right to extend or discontinue any of these programs at any time without prior notice.
DeepKron Mach. warrants to its authorized dealers who in turn warrant to the owner, that each new DeepKron excavator with a delivery date on or after 07/04/2013 will be free from proven defects in material and workmanship with respect to major components of the product except as otherwise specified herein for twelve (12) months, or a total of 1000 hours of use, whichever occurs first. The foregoing time periods shall all commence after delivery by the authorized DeepKron dealer to the original buyer.
During the warranty period, the authorized DeepKron dealer shall repair or replace, at DeepKron Mach's option, without charge for parts, any part of the DeepKron product except as otherwise specified herein which fails because of defects in material or workmanship. The owner shall provide the authorized DeepKron dealer with prompt written notice of the defect and allow reasonable time for repair or replacement. DeepKron Mach. may, at its option, require failed parts to be returned to the factory. Transportation of the DeepKron product for warranty work is the responsibility of the owner.
