DK10 Specs. & Configs.
Key Specifications
| Operating Weight | 2204 lb. (1000 kg) |
|---|---|
| Max. Dig Depth | 63.97 in. (1625 mm) |
| Reach at Ground Level | 94.76 in. (2407mm) |
| Width with Blade | 36.69 in. (932 mm) |

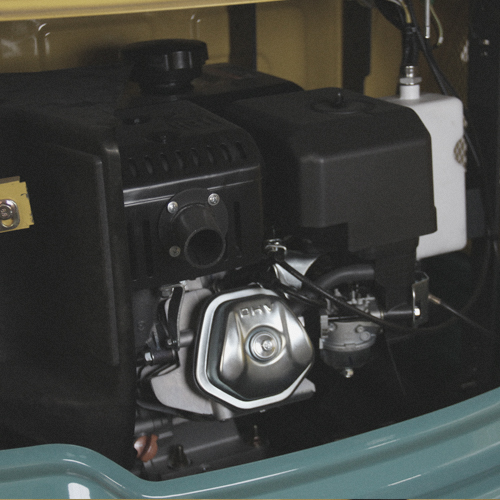

Engine
| Emission | EPA |
|---|---|
| Manufacturer | Briggs & Stratton |
| Horsepower | 13.5 hp (9.9 kW) |
| Type | Gasoline |
Performance
| Operating Weight | 2204 lb. (1000 kg) |
|---|---|
| Arm Breakout Force | 1322 lbf. (5874 N) |
| Bucket Breakout Force | 1764 lbf. (7845 N) |
| Operating Radius | 111.14 in. (2823 mm) |
| Max. Dig Depth | 63.97 in. (1625 mm) |
| Max. Dump Height | 69.21 in. (1625mm) |
| Reach at Ground Level | 94.76 in. (2407mm) |
| Length of Track on Ground | 39.37 in. (1000 mm) |
| Travel Speed | 0.9 mph (1.5 km/hr.) |
Capacity
| Fuel Tank | 1.45 gal. (5.5 L) |
|---|---|
| Rated Operating Capacity | N/A |
Hydraulic System
| Standard Flow | N/A |
|---|---|
| Rated Operating Pressure | N/A |
Dimensions
| Overall Length | N/A |
|---|---|
| Height with Canopy or Cab | 87.05 in. (2211 mm) |
| Width with Blade | 36.69 in. (932 mm) |
| Hydraulic Thumb | Standard |
|---|---|
| Swing Boom | N/A |
| Oil Pump Radiator | Optional |
| Dozer Blade | Standard |
| Cab Enclosure A/C | N/A |
| Reinforced Undercarriage | N/A |
| Quick Hitch | Optional |
| Auxiliary Hydraulics | N/A |
| High-low Speed Travel | N/A |
| Load Sensitive Control | N/A |
| Rubber Track | Standard |
| Steel Track | N/A |
| Angel Blade | N/A |
| Telescopic Undercarriage | N/A |
DK10 Features
| Optimized Hydraulics | |
|---|---|
| Predictable Control | |
| Exceptional Uptime | |
| Reinforced Undercarriage | |
| Integrated Rear Counterweight | |
| Protected Components | |
| Simple Transportation |
